ʻO nā hale paʻa paʻa paʻa wai i hoʻohui ʻia
ʻO ka hale holoi lole ma ke kumu o ka hale paʻa paʻa paʻa paʻa e hoʻonui i ka hale hoʻokiʻekiʻe i loko, ke kīʻaha holoi, ka lako wai a me ka pipeline a me nā mea ʻē aʻe, e hoʻokō i nā pono o ka poʻe e holoi.
Aia i loko o ka hale pāpaʻi wai he pahu 3 mika, he paepae lumi ʻauʻau, 2 pūʻulu o ke kila kuhili ʻole (5 mau keena me ke poʻo hoʻomaha hoʻokahi maʻamau), 1 hoʻonohonoho ʻauʻau mop (me ka ʻauʻau maʻamau), 1 hoʻonohonoho ʻauʻau wai holoi, kahi hoʻoheheʻe kila kila. , 1 hoʻonohonoho i ka lua papahele, ka puka me ka louver ea.ʻO kāna mau faucets a me nā mea ʻē aʻe he keleawe kumu, hoʻohana ʻia nā mea kaulana kaulana o Kina, hilinaʻi loa ka maikaʻi.
Hiki ke hoʻolālā ʻia ka hale e like me nā koi o ka mea kūʻai aku, e like me: Hoʻohui ʻia ka hale pā wai i ka hana ʻauʻau.
Hoʻohui ʻia nā ʻāpana e hoʻokaʻawale i ka lumi ʻauʻau mai ka lumi holoi holoi.
ʻO kekahi ʻaoʻao no ka ʻauʻau, ʻo kekahi ʻaoʻao no ka pā wai
Pahu holoi me ke ano okoa
Mea hoʻonani
ke kaupaku
V-170 kaupaku (nail huna)
V-290 kaupaku (me ke kui ʻole)
Ka ʻili o ka pā pā
Panel ripple pā
Pane ʻili ʻalani
ʻĀpana hoʻokaʻawale o ka pā pā
Huluhulu pōhaku
pulupulu aniani
Basin
kīʻaha maʻamau
Ke kīʻaha marble
Lamaku
kukui pōʻai
Lama kukui
Ke kīʻaha holoi lole
SS holoi lole lole
Ke kīʻaha holoi lole marble
He hui hoʻolālā ko GS Housing group - Beijing Boyuhongcheng Architectural Design Co., Ltd.
hiki i ka papa hana hoʻolālā ke hāʻawi i nā papahana alakaʻi ʻenehana a haku i kahi hoʻolālā kūpono no nā mea kūʻai aku.a wehewehe i ka manaʻo o nā hale i hana mua ʻia mai ka manaʻo o nā mea kūʻai aku.

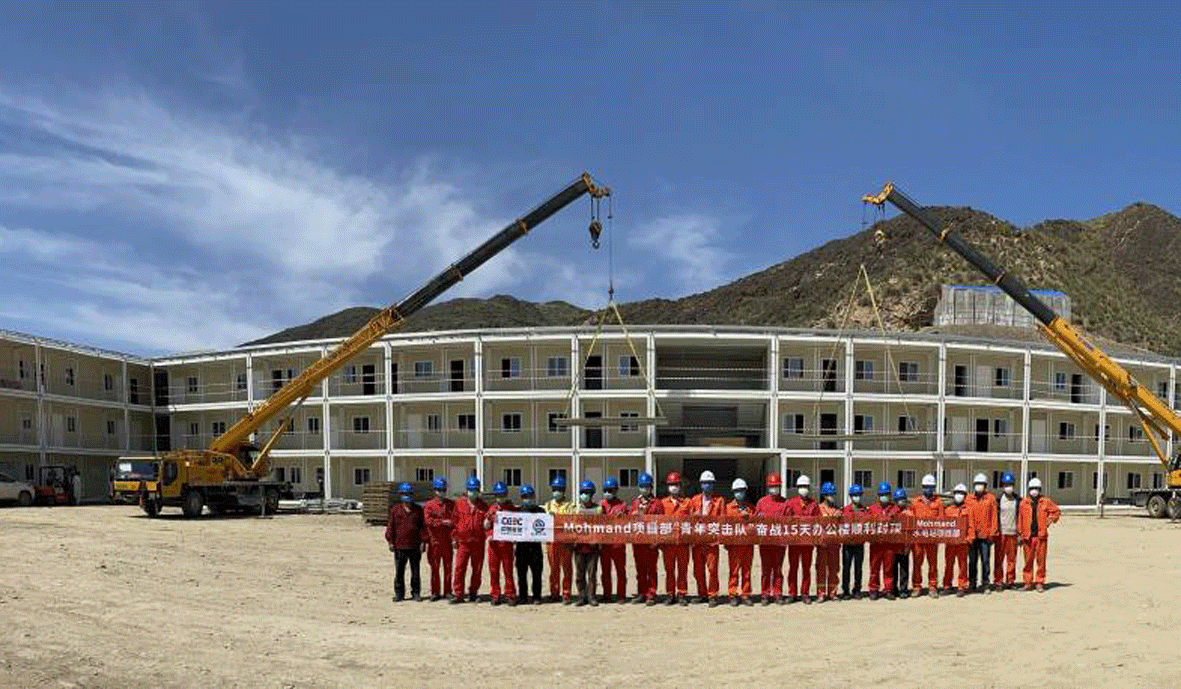

I kēia manawa, ua hana mākou i nā papahana nui nui: Pakistan Mohmand Hydropower Project, Trinidad Airport Project, Sri Lanka Colombo Project, La Paz Water Supply Project ma Bolivia, China Universal project, Daxing International airport project, "HUOSHENGSHAN" & "LEISHENSHAN" papahana halemai, a me nā papahana kūkulu Metro like ʻole ma Kina... e uhi ana i nā kahua ʻenekinia, kalepa, kīwila, hoʻonaʻauao, pūʻali koa ʻoihana etc.
Hiki i ka 1000-1500 ʻano hale pahu ke hoʻokō i nā pono o nā ʻano keʻena like ʻole, ka noho ʻana, ka ʻauʻau, ka lumi kuke, ka hālāwai kūkā a pēlā aku.
ʻO ka Design Institute of GS hale ke kumu o ka ʻenehana o ka hui.ʻO ia ke kuleana no ka hoʻomohala ʻana i nā huahana hou o ka hui, a me ka hoʻomaikaʻi ʻana i nā huahana i loaʻa, ka hoʻolālā hoʻolālā, ka hoʻolālā kiʻi kūkulu hale, ka hoʻolālā kālā a me nā hana ʻenehana e pili ana.Ua hoʻokuʻu ʻia lākou i ka hale paʻa paʻa-G ʻano hou, nā hale i hoʻokomo wikiwiki ʻia a me nā huahana ʻē aʻe, ua loaʻa iā 48 mau palapala hoʻopono aupuni.
| Hale Pahu Wai | ||
| ʻōlelo kikoʻī | L*W*H（mm） | Nui waho 6055*2990/2435*2896 ʻO ka nui o loko 5845 * 2780/2225 * 2590 hiki ke hāʻawi ʻia ka nui customzied |
| ʻAno hale | ʻO ka hale paʻa me nā paipu hoʻoheheʻe kūloko ʻehā (Ka nui o ke keʻa wai-paipu: 40*80mm) | |
| Halekuai | ≤3 | |
| Lā hoʻolālā | Hoʻolālā ola lawelawe | 20 makahiki |
| Haawe ola papahele | 2.0KN/㎡ | |
| Haawe ola hale | 0.5KN/㎡ | |
| Kaumaha ka lewa | 0.6KN/㎡ | |
| Sersmic | 8 degere | |
| Kapili | kolamu | Mea kiko'ī: 210*150mm, Ke kila ʻōwili anu anuanu, t=3.0mm Material: SGC440 |
| Kaola nui o ka hale | Hōʻike: 180mm, Ke kila ʻōwili anuanu, t=3.0mm Material: SGC440 | |
| Kaola nui o ka papahele | Hōʻike: 160mm, Ke kila ʻōwili anuanu, t=3.5mm Material: SGC440 | |
| Kaola lalo o ka hale | 'Ōlelo Aʻo: C100 * 40 * 12 * 2.0 * 7PCS, Galvanized ʻōwili anuanu C kila, t=2.0mm Material: Q345B | |
| Kaola lalo o ka papahele | Hōʻike: 120 * 50 * 2.0 * 9pcs, "TT" kino kila, t = 2.0mm Material: Q345B | |
| Pena | ʻO ka pauka electrostatic spraying lacquer≥80μm | |
| Kaupaku | Pane hale | 0.5mm Zn-Al i uhi ʻia i ke kila ʻulaʻula, keʻokeʻo-hina |
| Mea hoʻokaʻawale | 100mm huluhulu aniani me ka Al foil hookahi.mānoanoa ≥14kg/m³, Papa A ʻAʻole hiki ke puhi | |
| ke kaupaku | V-193 0.5mm i kaomi ʻia ʻo Zn-Al i uhi ʻia i ka pepa kila waihoʻoluʻu, nail huna, keʻokeʻo-hinahina. | |
| papahele | ʻili papahele | 2.0mm PVC papa, ʻeleʻele hina |
| Base | 19mm papa puluniu sima, density≥1.3g/cm³ | |
| ʻĀpana wai ʻole | ʻO ke kiʻiʻoniʻoni plastik-māmā | |
| Pāpaʻi sila lalo | 0.3mm Zn-Al i uhi ʻia ka papa | |
| Pā | mānoanoa | 75mm mānoanoa pāʻani sanwiti kila;Papa waho: 0.5mm ʻalani ʻili alumini i uhi ʻia i ka zinc ʻulaʻula kila pā, ʻelepani keʻokeʻo, uhi PE;ʻO ka pā i loko: 0.5mm alumini-zinc i uhi ʻia i ka pā maʻemaʻe o ke kila kala, keʻokeʻo hina, ka uhi PE;E hoʻohana i ka "S" type plug interface e hoʻopau i ka hopena o ke alahaka anu a wela |
| Mea hoʻokaʻawale | huluhulu pōhaku, density≥100kg/m³, Papa A ʻAʻole hiki ke puhi | |
| Puka | Hōʻike （mm） | W*H=840*2035mm |
| Mea waiwai | Pani kila | |
| Pukaaniani | Hōʻike （mm） | pukaaniani mua: W*H=1150*1100,Puaniani hope: W*H==800*500 |
| Mea paʻa | ʻO ke kila kila, 80S, Me ke koʻokoʻo anti-ʻaihue, puka aniani ʻike ʻole ʻia | |
| aniani | 4mm+9A+4mm aniani pālua | |
| Uila | Voltage | 220V~250V / 100V~130V |
| Uea | Uea nui:6㎡, uea AC:4.0㎡, uea kumu:2.5㎡, uea hoʻololi kukui:1.5㎡ | |
| mea wawahi | Mea hoʻokaʻawale kaapuni liʻiliʻi | |
| Ka kukui | Nā kukui wai pōʻai ʻelua, 18W | |
| Socket | 1pcs 5 puka puka 10A,1pcs 3 puka AC socket 16A,1pcs hoʻokahi pili mokulele hoʻololi 10A (EU /US ..standard) | |
| Waiwai a me ka hoʻoheheʻe wai | Pūnaehana hoʻolako wai | DN32,PP-R, Paipu wai a me nā mea pono |
| Pūnaehana hoʻokahe wai | De110/De50, UPVC wai paipu a me na mea pono | |
| Pā kila | Mea paʻa | Paipu huinaha huila 口40*40*2 |
| Base | 19mm papa puluniu sima, density≥1.3g/cm³ | |
| papahele | 2.0mm mānoanoa non-slip PVC papahele, ʻeleʻele hina | |
| Mea hoʻomaʻemaʻe | Mea hoʻomaʻemaʻe | 2 pcs quintuple sink, 10 pcs gooseneck faucets,1 pcs washing machine faucet,1 pcs mop sink and faucet |
| Nā lako | 'auwaha kuhili 'ole, 'auwaha 'auwaha kuhili 'ole, 1pcs ku'u papahele papahele | |
| ʻO nā mea ʻē aʻe | ʻO luna a me ke kolamu mea hoʻonani | 0.6mm Zn-Al i uhi ʻia i ke kila kila, keʻokeʻo-hina |
| Ke kāʻei ʻana | 0.8mm Zn-Al i uhi ʻia me ke kila kila, keʻokeʻo-hinahina | |
| Pani pani puka | 1 pcs Pani Puka, Aluminum (koho) | |
| E hoʻohana i ka hana maʻamau, ua kūpono nā mea hana a me nā mea pono me ke kūlana aupuni.e like me, hiki ke hāʻawi ʻia ka nui i hoʻopili ʻia a me nā mea pili e like me kāu makemake. | ||
