Hale Ikeka Wahine i makaukau
Hoʻohana ʻia ka hoʻolālā ʻana o ka hale lua wahine ma ka hale GS.Hiki ke hoʻoneʻe ʻia ka hale ma ke ʻano holoʻokoʻa, a hoʻopaʻa ʻia a hoʻoneʻe ʻia ma hope o ka wehe ʻana, a laila hōʻuluʻulu hou ma ke kahua a hoʻohana ʻia ma hope o ka hoʻopili ʻia ʻana me ka wai a me ka uila.

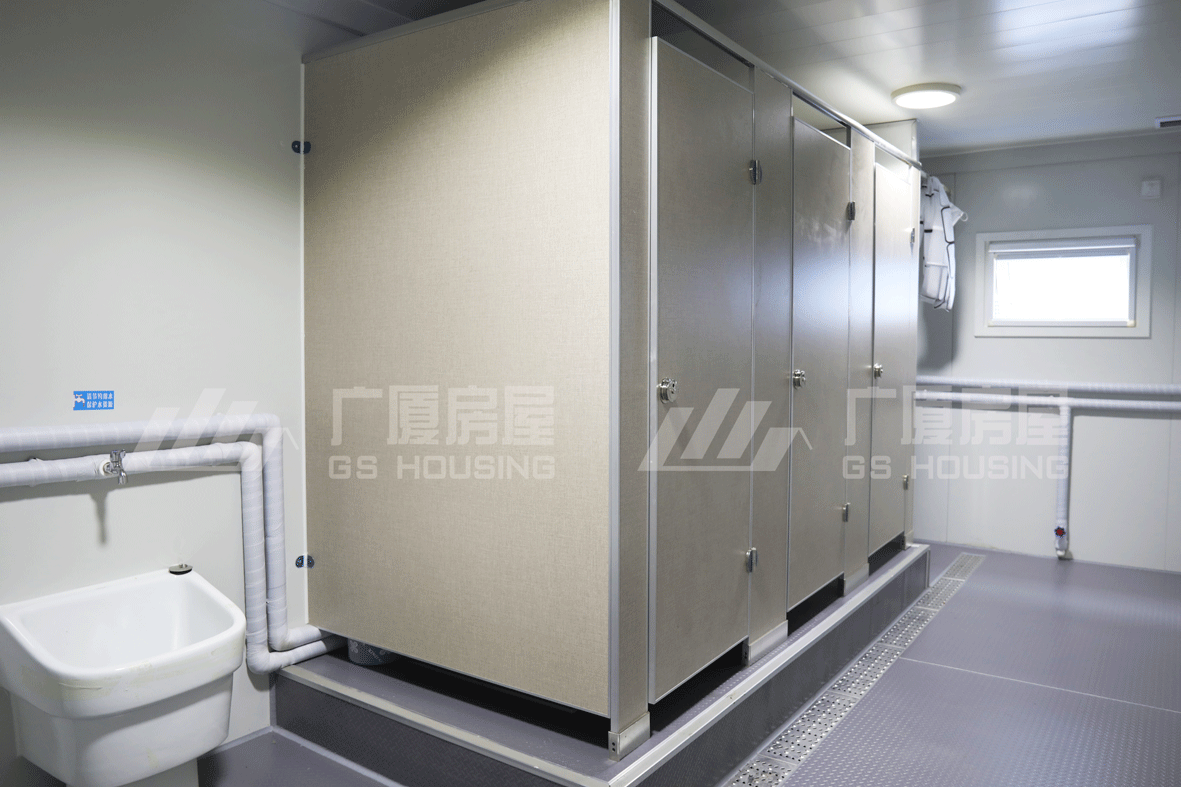

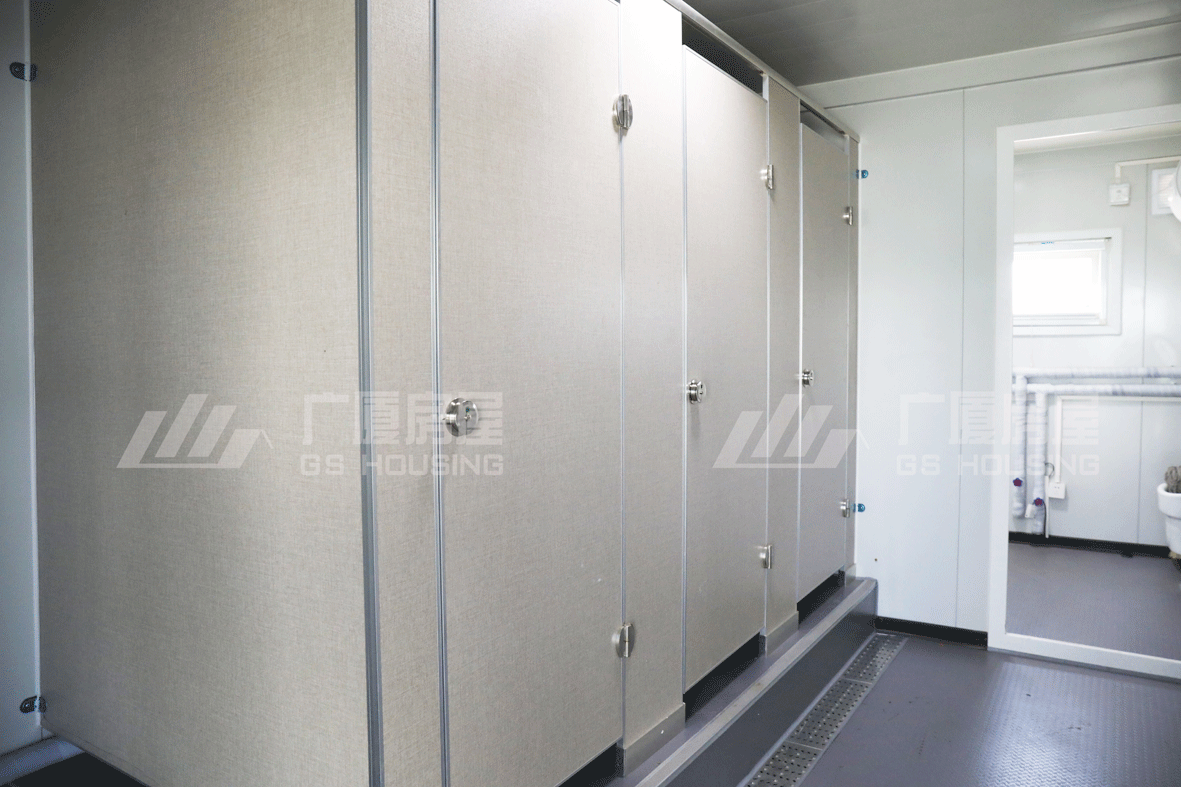

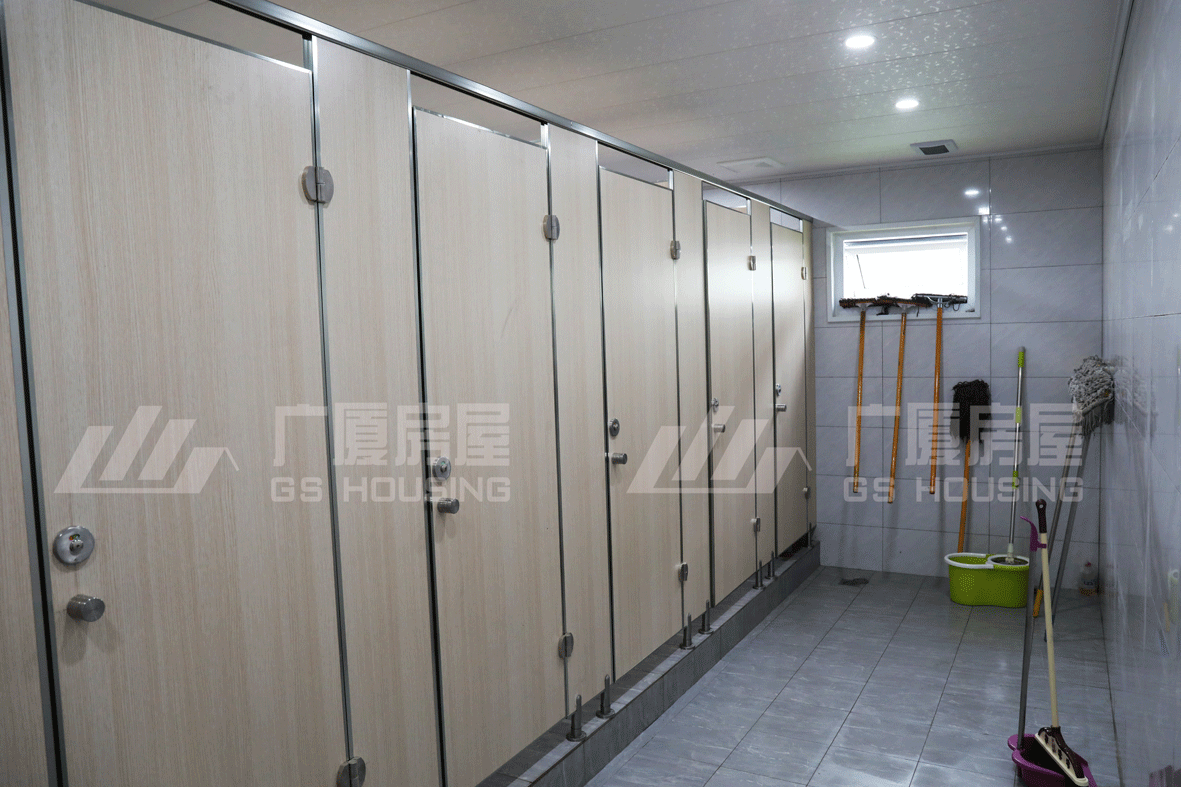

ʻO nā mea hoʻomaʻemaʻe i loko o ka hale lua wahine maʻamau he 5pcs squatting toilets a me nā pahu wai, 1pcs mop sink a me ka faucet, 1pcs kolamu kolamu a me ka faucet, hiki ke hoʻolālā ʻia nā mea i loko e like me nā koi o ka papahana.
Eia kekahi, ʻo ka laulā maʻamau o ka hale ʻauʻau he 2.4 / 3M, ʻoi aku ka nui a i ʻole ka hale liʻiliʻi hiki ke hana maʻamau.
Pūʻulu Mea Hana Maʻemaʻe
Nā Kūlana Kūlana Kiʻekiʻe
Kiʻi luna
Kaola nui:
3.0mm mānoanoa galvanized anu-owili kila profile, mea:SGC340;
Sub-beam: hoʻohana i 7pcs galvanizing kila, mea: Q345B, manawa: 755mm.
ʻO ka mānoanoa o nā hale modular market he 2.5-2.7mm, ʻo ke ola lawelawe ma kahi o 15 mau makahiki.e noʻonoʻo i ka papahana oversea, ʻaʻole maʻalahi ka mālama ʻana, ua mānoanoa mākou i ke kila kaola o nā hale, 20 mau makahiki hoʻohana ʻia ke ola.
Kiʻi lalo:
Kaola nui:
3.5mm mānoanoa galvanized anu-owili kila profile, mea:SGC340;
Sub-beam: 9pcs "π" type galvanizing steel, material:Q345B,
ʻO ka mānoanoa o nā hale modular market he 2.5-2.7mm, ʻo ke ola lawelawe ma kahi o 15 mau makahiki.e noʻonoʻo i ka papahana oversea, ʻaʻole maʻalahi ka mālama ʻana, ua mānoanoa mākou i ke kila kaola o nā hale, 20 mau makahiki hoʻohana ʻia ke ola.
Nā kolamu:
3.0mm Galvanized anuanu ʻōwili kila profile, mea: SGC440, ʻehā kolamu hiki ke hoʻololi.
Hoʻopili ʻia nā kolamu me ke kiʻi luna a me ke kiʻi lalo me nā bolts poʻo Hexagon (ikaika: 8.8)
E hōʻoia i ka hoʻopiha ʻia o ka poloka insulation ma hope o ka hoʻokomo ʻana i nā kolamu.
E hoʻohui i nā lipine insulating ma waena o nā hui o nā hale a me nā pā pā e pale i ka hopena o nā alahaka anu a me ka wela a hoʻomaikaʻi i ka hana o ka mālama ʻana i ka wela a me ka mālama ʻana i ka ikehu.
Nā pā pā:
Mānoanoa: 60-120mm mānoanoa o ke kila ʻulaʻula,
Papa waho: Hana ʻia ka papa waho me 0.42mm ʻalani peel pattern Alu-zinc colorful steel plate, HDP coating,
ʻĀpana hoʻokaʻawale: 60-120 mm mānoanoa hydrophobic basalt hulu hipa (pale i ke kaiapuni), density ≥100kg/m³, ʻo ka hana puhi ʻana ʻo ka papa A ʻaʻole hiki ke puhi.
ʻO ka pā i loko o ka pā: Hoʻohana ka ʻaoʻao i loko i ka 0.42mm maʻemaʻe palahalaha Alu-zinc paʻa kila, ka uhi PE, kala: keʻokeʻo hina,
Ua hōʻoia i ka waiwai insulation wela, kani insulation hana.
Noi no na hale luawai wahine
ʻOi aku ka paʻakikī o ka hoʻokomo ʻana i ka hale lua ma mua o nā hale maʻamau, akā loaʻa iā mākou nā ʻōlelo kikoʻī kikoʻī a me nā wikiō, a hiki ke hoʻopili ʻia ka wikiō pūnaewele e kōkua i nā mea kūʻai aku e hoʻoponopono i ka pilikia hoʻonohonoho, ʻoiaʻiʻo, hiki ke hoʻouna ʻia nā luna hoʻonohonoho i ka pūnaewele. inā pono.
ʻOi aku ma mua o 360 mau hale hana hoʻonohonoho hale ma GS hale, ʻoi aku ma mua o 80% i hana ʻia ma GS Housing ma mua o 8 mau makahiki.I kēia manawa, ua hoʻokomo lākou ma mua o 2000 mau papahana me ka maʻalahi.
Hoʻomaka i nā kumu hana
Loaʻa i nā kumu hana ʻelima o GS Housing kahi mana hana makahiki piha o nā hale 170,000, ʻo ka hana ikaika a me nā hana hana e hāʻawi i kahi kākoʻo paʻa no ka hana hale.E like me nā hale hana i hoʻolālā ʻia me ke ʻano kīhāpai, nani loa ke kaiapuni, ʻO lākou nā kumu hana huahana hou a me nā hale modular hou i Kina.Ua hoʻokumu ʻia kahi keʻena noiʻi hale modular kūikawā e hōʻoia i ka hāʻawi ʻana i nā mea kūʻai aku i kahi wahi hale palekana, kūlohelohe, aloha, naʻauao a ʻoluʻolu hoʻi.
Ke kumu hana hana akamai ma Tianjin
Uhi: 130,000㎡
Ka mana hana makahiki: 50,000 hale hoʻonohonoho
ʻO ka hale hana kīhāpai-ʻano hana ma Jiangsu
Uhi: 80,000㎡
Ka mana hana makahiki: 30,000 hale hoʻonohonoho
6S kumu hoʻohālike hale hana ma Guangdong
Uhi: 90,000 ㎡
Ka mana hana makahiki: 50,000 hale hoʻonohonoho
ʻO ka hale hana hana kūpono ma Liaoning
Ka uhi: 60,000㎡
Ka mana hana makahiki: 20,000 hale hoʻonohonoho.
ʻO ka hale hana ʻenehana-hana kumu ma Sichuan
Ka uhi: 60,000㎡
Ka mana hana makahiki: 20,000 hale hoʻonohonoho.
Loaʻa i ka GS Housing nā laina hana hale modular e kākoʻo ana, me nā laina hana papa piha piha piha, Graphene electrostatic spray coating lines, nā papa hana hoʻolaha kūʻokoʻa, nā puka puka a me nā puka makani, nā papa hana machining, nā hale hana hui, nā mīkini ʻoki ahi CNC piha piha, a me ka ʻoki ʻana i ka laser. nā mīkini, nā mīkini hoʻoheheʻe arc i hoʻopaʻa ʻia i loko o ka puka, ka hoʻoheheʻe ʻana i ka carbon dioxide i pale ʻia, nā kaomi kuʻi mana kiʻekiʻe, nā mīkini hoʻoheheʻe anuanu, nā mīkini wili, CNC bending and shearing machine etc. ʻO ka hana CNC, e hōʻoia i ka hana ʻana o nā hale i ka manawa kūpono, kūpono a pololei.
| ʻO ka ʻōlelo kikoʻī o ka hale lua wahine | ||
| ʻōlelo kikoʻī | L*W*H（mm） | Nui waho 6055*2990/2435*2896 ʻO ka nui o loko 5845 * 2780/2225 * 2590 hiki ke hāʻawi ʻia ka nui customzied |
| ʻAno hale | ʻO ka hale paʻa me nā paipu hoʻoheheʻe kūloko ʻehā (Ka nui o ke keʻa wai-paipu: 40*80mm) | |
| Halekuai | ≤3 | |
| Lā hoʻolālā | Hoʻolālā ola lawelawe | 20 makahiki |
| Haawe ola papahele | 2.0KN/㎡ | |
| Haawe ola hale | 0.5KN/㎡ | |
| Kaumaha ka lewa | 0.6KN/㎡ | |
| Sersmic | 8 degere | |
| Kapili | kolamu | Mea kiko'ī: 210*150mm, Ke kila ʻōwili anu anuanu, t=3.0mm Material: SGC440 |
| Kaola nui o ka hale | Hōʻike: 180mm, Ke kila ʻōwili anuanu, t=3.0mm Material: SGC440 | |
| Kaola nui o ka papahele | Hōʻike: 160mm, Ke kila ʻōwili anuanu, t=3.5mm Material: SGC440 | |
| Kaola lalo o ka hale | 'Ōlelo Aʻo: C100 * 40 * 12 * 2.0 * 7PCS, Galvanized ʻōwili anuanu C kila, t=2.0mm Material: Q345B | |
| Kaola lalo o ka papahele | Hōʻike: 120 * 50 * 2.0 * 9pcs, "TT" kino kila, t = 2.0mm Material: Q345B | |
| Pena | ʻO ka pauka electrostatic spraying lacquer≥80μm | |
| Kaupaku | Pane hale | 0.5mm Zn-Al i uhi ʻia i ke kila ʻulaʻula, keʻokeʻo-hina |
| Mea hoʻokaʻawale | 100mm huluhulu aniani me ka Al foil hookahi.mānoanoa ≥14kg/m³, Papa A ʻAʻole hiki ke puhi | |
| ke kaupaku | V-193 0.5mm i kaomi ʻia ʻo Zn-Al i uhi ʻia i ka pepa kila waihoʻoluʻu, nail huna, keʻokeʻo-hinahina. | |
| papahele | ʻili papahele | 2.0mm PVC papa, ʻeleʻele hina |
| Base | 19mm papa puluniu sima, density≥1.3g/cm³ | |
| ʻĀpana wai ʻole | ʻO ke kiʻiʻoniʻoni plastik-māmā | |
| Pāpaʻi sila lalo | 0.3mm Zn-Al i uhi ʻia ka papa | |
| Pā | mānoanoa | 75mm mānoanoa pāʻani sanwiti kila;Papa waho: 0.5mm ʻalani ʻili alumini i uhi ʻia i ka zinc ʻulaʻula kila pā, ʻelepani keʻokeʻo, uhi PE;ʻO ka pā i loko: 0.5mm alumini-zinc i uhi ʻia i ka pā maʻemaʻe o ke kila kala, keʻokeʻo hina, ka uhi PE;E hoʻohana i ka "S" type plug interface e hoʻopau i ka hopena o ke alahaka anu a wela |
| Mea hoʻokaʻawale | huluhulu pōhaku, density≥100kg/m³, Papa A ʻAʻole hiki ke puhi | |
| Puka | Hōʻike （mm） | W*H=840*2035mm |
| Mea waiwai | Pani kila | |
| Pukaaniani | Hōʻike （mm） | Window:WXH=800*500； |
| Mea paʻa | ʻO ke kila kila, 80S, Me ke koʻokoʻo anti-ʻaihue, puka aniani ʻike ʻole ʻia | |
| aniani | 4mm+9A+4mm aniani pālua | |
| Uila | Voltage | 220V~250V / 100V~130V |
| Uea | Uea nui:6㎡, uea AC:4.0㎡, uea kumu:2.5㎡, uea hoʻololi kukui:1.5㎡ | |
| mea wawahi | Mea hoʻokaʻawale kaapuni liʻiliʻi | |
| Ka kukui | Na kukui poai pālua,18W | |
| Socket | 2pcs 5 puka puka 10A, 1pcs 3 puka AC socket 16A, 1pcs hoʻokahi pili mokulele hoʻololi 10A, (EU /US ..standard) | |
| Waiwai a me ka hoʻoheheʻe wai | Pūnaehana hoʻolako wai | DN32,PP-R, Paipu wai a me nā mea pono |
| Pūnaehana hoʻokahe wai | De110/De50, UPVC wai paipu a me na mea pono | |
| Pā kila | Mea paʻa | Paipu huinaha huila 口40*40*2 |
| Base | 19mm papa puluniu sima, density≥1.3g/cm³ | |
| papahele | 2.0mm mānoanoa non-slip PVC papahele, ʻeleʻele hina | |
| Mea hoʻomaʻemaʻe | Mea hoʻomaʻemaʻe | 5 hale lua kupapau a me na pahu wai, 1 pahu mop a me ka paipu, 2 kolamu a me ka paipu. |
| Māhele | 1200 * 900 * 1800 ʻO ka ʻāpana lāʻau hoʻohālike, ka pahu kāleka alumini alumini, ka ʻaoʻao kila kila. | |
| Nā lako | 1 pcs pahu kiko, 2 pcs aniani lumi hale lole, ʻAuwai kila kuʻehiʻe, ʻauʻau ʻauʻau kila kuhili ʻole, 1 ʻeke ʻauʻau papahele kūpaʻa | |
| ʻO nā mea ʻē aʻe | ʻO luna a me ke kolamu mea hoʻonani | 0.6mm Zn-Al i uhi ʻia i ke kila kila, keʻokeʻo-hina |
| Ke kāʻei ʻana | 0.8mm Zn-Al i uhi ʻia me ke kila kila, keʻokeʻo-hinahina | |
| Pani pani puka | 1 pc Pani Puka, Aluminum (koho) | |
| Pepa puhi | 1 pcs pā hoʻoheheʻe pā, pāpale kila kuhiliʻole | |
| E hoʻohana i ka hana maʻamau, ua kūpono nā mea hana a me nā mea pono me ke kūlana aupuni.e like me, hiki ke hāʻawi ʻia ka nui i hoʻopili ʻia a me nā mea pili e like me kāu makemake. | ||
